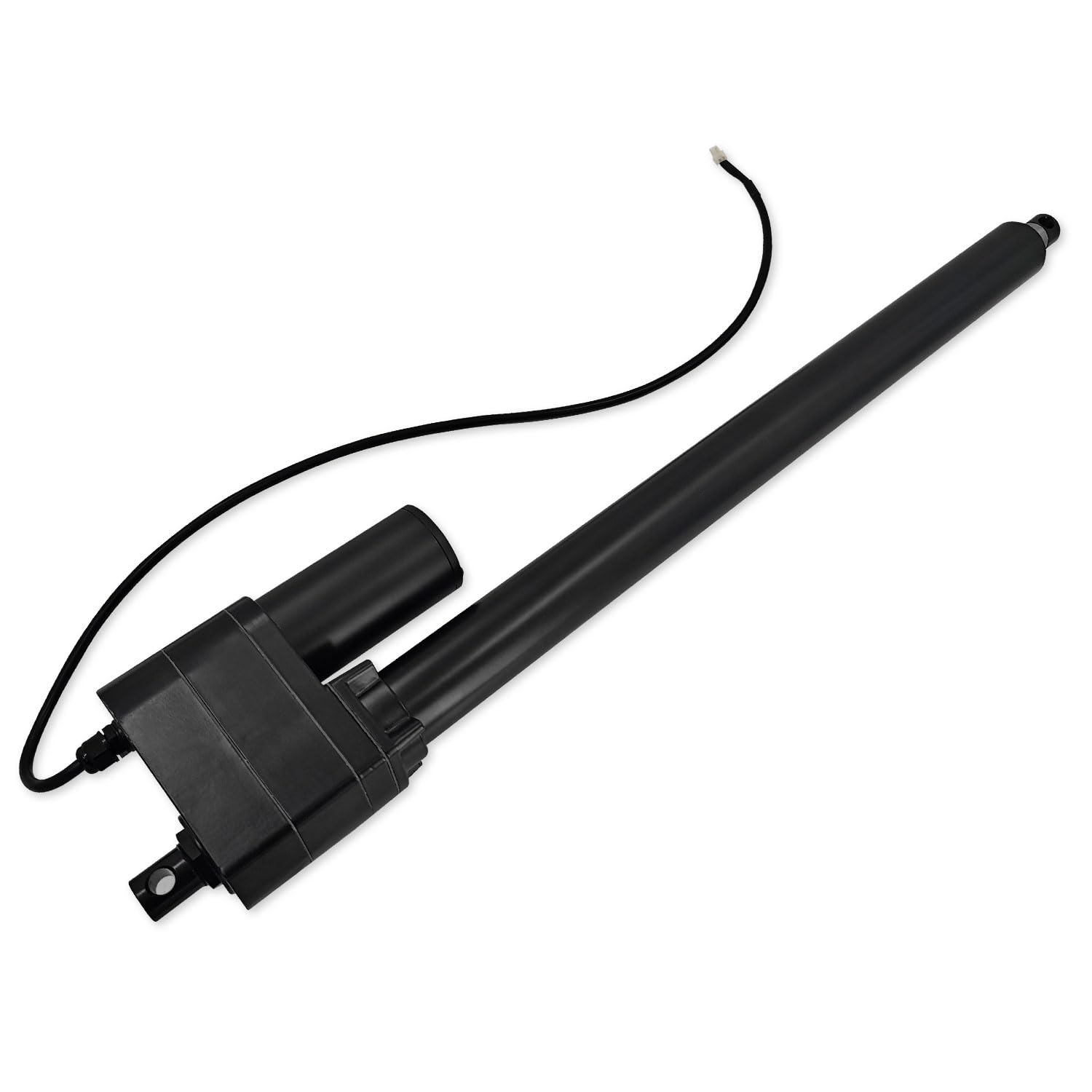

22” 2000 lbs Linear Actuator – 12V Heavy Duty Electric Linear Actuator with Potentiometer, IP65 Protection Rate Heavy Duty Linear Actuator for Agriculture Automotive Industry Replace PA-17

Price: $379.99
(as of Dec 03, 2024 16:29:29 UTC – Details)

Product Description

22 inches high force linear actuators – 2000 lbs | 12V | IP65 – Heavy Duty Linear Actuator for Agriculture Automotive Industry

QuenPenge 8-Inch High Force Linear Actuator is engineered for heavy-duty performance, capable of handling loads up to 2200 lbs and maintaining static loads of up to 4000 lbs.

Replace and fully restore part functionality after the original fails.

Replacement Part Number: PA-17

Stroke Length:

Stroke Length: 559mm/ 20 inchRetracted Length: 809mm/31.87 inchExtended Length:1368mm /52.87 inch

22″ Heavy Duty Linear Motion Actuator powered by a 12V brushed DC motor, the QuenPenge actuator features a simple 2-wire system that is compatible with Molex Mini-Fit Jr 2-pin connectors

Feature：

Made of Durable and Sturdy constructionScrew washer design to prevent screws from falling off automaticallyWith adjustable limit switches, this actuator offers precise control for a variety of applications, from industrial automation to agriculture machinery.Preset Holes bearing design, easy to installRated with IP65 protection, the actuator is resistant to dust, water, and temperature extremes, ensuring reliable operation even in harsh industrial or outdoor settings.

Specification:

Name: 8 inch Heavy Duty Linear ActuatorVoltage: 12V DCCurrent (full load): 10A – 20AType of duty: 20%Noise: db<70(A)Operational temp: -25ºC to +65ºCRated Loads（LBS/N): 2,200lbs/900KG/8825.98NIP Rating: IP 65Mounting Holes: 0.50″Certification: CE

Wide Applications:

Use for adjusting heavy equipmentFits for lifting or moving components.Suitable for precise, high-force movements in various industrial machines.Suitable for tractors or combines, Automotive, Industrial Machinery, Solar Tracking Systems, industrial automation, agricultural equipment, heavy vehicles, renewable energy, traffic control or DIY hobbyists

Kindly Note:

Not recommended using adapters other than 12V poweradapfer, may compromise device performance and safefy.

Tipps:

Before placing your order, please do check your part number and select the correct one!

Package included:

1x 22″ Stroke Electric Linear Motor Actuator

Add to Cart

Add to Cart

Add to Cart

Price

$379.99$379.99 $359.99$359.99
— $319.99$319.99

Name
22 inch Heavy Duty Linear Actuator 12 inch Heavy Duty Linear Actuator 8 inch Heavy Duty Linear Actuator 6 inch Heavy Duty Linear Actuator

Voltage
12V DC 12V DC 12V DC 12V DC

Stroke Length
559mm/ 20 inch 305mm/12 inch 203mm/ 8 inch 153mm / 6 inch

Rated Loads（LBS/KG/N)
2,000lbs/900KG/8825.98N 2,000lbs/900KG/8825.98N 2,000lbs/900KG/8825.98N 2,000lbs/900KG/8825.98N

IP Rate
IP65 IP65 IP65 IP65

Product Dimensions ‏ : ‎ 31.2 x 7.41 x 4.68 inches; 16.78 Pounds
Item model number ‏ : ‎ 22” Stroke 2000 lbs Linear Actuator 12V
Date First Available ‏ : ‎ September 14, 2024
Manufacturer ‏ : ‎ QuenPenge
ASIN ‏ : ‎ B0DH27CKX7
Country of Origin ‏ : ‎ China

Specification: Name: 6 inch High Force Linear Actuator; Rated Loads（LBS/N): 2,200lbs/900KG/8825.98N; Maximum load capacity.Voltage: 12V; Stroke Length: 559mm/ 20 inch; Retracted Length: 809mm/31.87 inch; Extended Length:1368mm /52.87 inch
Heavy Duty Performance: The PA-17 12V linear actuator with stainless steel shaft and metal gears enable it to push or pull up to 2000 lbs and hold static loads of up to 4000 lbs. Adjustable limit switches for precise control, available in stroke lengths up to 6 inches
IP65 High-Level Protection: With an IP65 rating, the PA-17 actuator is designed to withstand harsh environments, providing protection against dust and water, which ensure the unit can withstand harsh environments as temperature changes, dust and water
Simplifying connections: 2000 lbs heavy duty linear actuator Equipped with a brushed DC motor, the PA-17 high-force linear actuator operates with a simple 2-wire system, allowing it easy compatible with the Molex Mini-Fit Jr 2-pin connector, rated for a 20A current draw
Industrial Applications: The PA-17 high force linear actuator is widely used in industries such as manufacturing, machinery, agriculture, and industrial automation, where high performance and reliability are essential.
